OCTG
Product Overview
Oil Country Tubular Goods (OCTG) refer to a family of seamless and welded steel pipes specifically designed for use in the exploration, drilling, completion, and production of oil and natural gas wells. OCTG products are the backbone of upstream operations, serving to line the wellbore, extract hydrocarbons, and facilitate drilling processes.
- The primary product categories include:
| Category | Primary Function |
|---|
| Casing | Installed in the wellbore to prevent wall collapse, isolate formations, and control formation pressures. Accounts for over 70% of OCTG consumption. |
| Tubing | Conveys oil, gas, and injection fluids between the reservoir and surface facilities. |
| Accessories | Includes couplings, pup joints, crossover joints, and other connection components. |
Manufacturing Processes
- OCTG products are manufactured using two primary methods:
1 Seamless Pipe
Produced by piercing and rolling solid steel billets without any welded joints. Seamless pipes offer superior strength, uniformity, and reliability in harsh downhole environments. They account for approximately 90% of the OCTG market in demanding applications.
2 Welded Pipe
Manufactured using Electric Resistance Welding (ERW), Longitudinal Submerged Arc Welding (LSAW), or Spiral Submerged Arc Welding (SSAW). Welded pipes provide a more cost-effective solution for less critical applications and are gaining market share.
Full Range of Specifications
OCTG products are available in a comprehensive range of outside diameters (OD) and wall thicknesses to suit diverse well conditions. Representative dimensions are summarized below (based on standard supply ranges):
1 Casing and Tubing Common OD Sizes
| OD (mm) | OD (inches) | Typical Applications |
|---|
| 114.3 | 4 1/2 | Tubing, shallow casing |
| 139.7 | 5 1/2 | Tubing, production casing |
| 168.3 | 6 5/8 | Production casing |
| 177.8 | 7 | Intermediate casing |
| 193.7 | 7 5/8 | Intermediate casing |
| 219.1 | 8 5/8 | Intermediate casing |
| 244.5 | 9 5/8 | Production/intermediate casing |
| 273.0 | 10 3/4 | Intermediate casing |
| 298.5 | 11 3/4 | Surface/intermediate casing |
| 323.9 | 12 3/4 | Surface/intermediate casing |
| 339.7 | 13 3/8 | Surface casing |
| 346.1 | 13 5/8 | Surface casing |
| 355.6 | 14 | Surface casing |
| 406.4 | 16 | Surface/conductor casing |
| 473.1 | 18 5/8 | Conductor casing |
| 508.0 | 20 | Conductor casing |
| 530.0 | 21 | Conductor casing |
| 558.0 | 22 | Conductor casing |
| 610.0 | 24 | Conductor casing |
2 Wall Thickness Range
Available wall thicknesses typically range from 5.2 mm to 25.4 mm, with specific combinations depending on the OD and steel grade.
3 Length Ranges
- Range 1: 4.88 – 7.62 m (16 – 25 ft)
- Range 2: 7.62 – 10.36 m (25 – 34 ft) – most commonly supplied
Range 3: 10.36 – 14.63 m (34 – 48 ft), with extended lengths up to 16–18 m available for specific grades
Applicable Standards
OCTG products are manufactured and tested in accordance with rigorous international and national standards.
1 International Standards
| Standard | Description |
|---|
| API 5CT (11th Edition) | Casing, tubing, and coupling stock – the primary global standard |
| ISO 11960 | Petroleum and natural gas industries – Steel pipes for use as casing or tubing for wells (aligned with API 5CT) |
| API 5B | Threading, gauging, and thread inspection for casing, tubing, and line pipe |
| API 5CRA / ISO 13680 | Corrosion-resistant alloy (CRA) tubulars for casing, tubing, and coupling stock |
| API TR 5C3 | Performance properties of casing, tubing, and drill pipe (collapse, burst, tensile) |
| NACE MR0175 / ISO 15156 | Materials for use in H₂S-containing environments in oil and gas production |
2 Chinese National Standards (GB Equivalents)
| Standard | Description |
|---|
| GB/T 19830 | Petroleum and natural gas industries – Steel pipes for use as casing or tubing for wells (equivalent to API 5CT) |
| SY/T 6194 | Chinese petroleum industry standard for casing and tubing |
Steel Grades
1 API Standard Grades (API 5CT)
- All API steel grades are available across Product Specification Levels (PSL-1, PSL-2, and PSL-3):
| Grade | Application Characteristics |
|---|
| H40 | Standard carbon steel, general use |
| J55 | Standard carbon steel, general use |
| K55 | Standard carbon steel, similar to J55 with slightly different chemistry |
| N80 | Higher strength, standard and weldable variants (N80Q, N80Q Weldable) |
| L80 | Higher strength with improved toughness; common in sour service when supplemented with SR requirements |
| C90 | API sour service grade – specifically designed for H₂S environments |
| R95 | Standard grade for general applications |
| T95 | API sour service grade |
| P110 | High-strength grade for deep wells and demanding loads |
| C110 | API sour service grade – highest strength sour service grade |
| Q125 | Ultra-high strength grade |
2 Proprietary Grades for Special Service Conditions
2.1.1.Beyond API grades, manufacturers offer proprietary steel grades engineered for specific downhole challenges:
- 2.1.1.5.2.1 Sour Service (H₂S Resistance)
| Grade Type | Description |
|---|
| API Sour Grades | C90, T95, C110 – with hardness limitations and NACE TM0177 testing |
| Proprietary Sour Grades | Enhanced low-alloy steels with grain size control (ASTM 5–6), hardness limitation, and superior SSC (Sulfide Stress Cracking) resistance |
| Severe Sour Service | Proprietary grades tested at higher H₂S partial pressures (up to 10% atm) with optimized chemistry |
- 2.1.1.5.2.2 Sweet Service (CO₂ Resistance)
| Grade Type | Description |
|---|
| Low Chromium Grades | 1Cr, 3Cr – cost-effective alternative for mild sweet corrosion environments |
| Martensitic Stainless Steels | 13Cr, HP13Cr, SUP13Cr – for high-temperature CO₂ service with excellent corrosion resistance and low-temperature toughness |
| Corrosion Resistant Alloys (CRA) | Duplex (22Cr, 25Cr), Super Duplex, and Nickel-base alloys (Alloy 825, Alloy 028, etc.) for severe CO₂/H₂S/chloride environments |
- 2.1.1.5.2.3 High Collapse Resistance
| Grade Type | Description |
|---|
| High Collapse Grades | Proprietary grades engineered with enhanced yield strength and optimized geometric properties to resist external collapse pressures in deep wells |
| High Collapse + Sour Service | Combined grades offering both collapse resistance and H₂S tolerance |
- 2.1.1.5.2.4 High Temperature / HPHT Service
| Grade Type | Description |
|---|
| Modified 13Cr Grades | High-Ni 13Cr variants for elevated temperature performance beyond standard 13Cr limits |
| CRA Grades | Nickel-base alloys (Sanicro® 28, 48, etc.) with thermal stability and creep resistance for extreme HPHT conditions |
Thread Connections
1 API Thread Connections (API 5B)
- API threads are standardized, interchangeable, and widely available:
| Thread Type | Abbreviation | Application |
|---|
| Short Round Thread Casing | STC | General casing connections |
| Long Round Thread Casing | LTC | Enhanced performance round thread for casing |
| Buttress Thread Casing | BTC | Higher strength, improved load-bearing capacity for casing |
| Non-Upset Tubing | NUE | Standard tubing connection |
| External Upset Tubing | EUE | Enhanced connection strength for tubing |
| Integral Joint | IJ | Direct connection without coupling |
- Limitations of API Threads:
- Lower connection efficiency (60–80% of pipe body for round threads)
- Limited gas sealing capability
- Susceptibility to galling and stress corrosion
2 Premium Thread Connections
Premium connections feature metal-to-metal seals, torque shoulders, and optimized thread designs to overcome API limitations. Key types include:
- 2.1.1.6.2.1 Gas-Tight / Metal-to-Metal Seal Connections
| Connection Type | Description |
|---|
| Single Metal Seal | Primary sealing via metal-to-metal interference (e.g., WSP-1T with spherical/cylindrical seal) |
| Dual Metal Seal | Multiple sealing elements for enhanced reliability |
| Seal + Torque Shoulder | Combines sealing function with precise makeup control and anti-galling performance |
- 2.1.1.6.2.2 Direct Connect / Integral Connections
| Connection Type | Description |
|---|
| Integral Premium Connection | Box-and-pin machined directly on pipe ends – no coupling required |
| Semi-Integral Connection | Box end enlarged by swaging or upsetting, maintaining near-flush OD |
- 2.1.1.6.2.3 Semi-Direct Connect (Semi-Flush) Connections
| Connection Type | Description |
|---|
| Semi-Flush Connection | Moderate OD increase at connection, balancing clearance and strength |
- 2.1.1.6.2.4 Dual-Shoulder / Double-Shoulder Connections
| Connection Type | Description |
|---|
| Dual Torque Shoulder | Primary and secondary torque shoulders for significantly higher torsional capacity (e.g., WSP-2T – >2× single-shoulder torque) |
| High-Torque Connection | Engineered for rotating casing and drilling-with-casing applications |
- 2.1.1.6.2.5 Wedge Thread Connections
| Connection Type | Description |
|---|
| Wedge Thread | Thread form with increasing width along thread profile, creating interference upon makeup – exceptional torque and tension resistance |
- 2.1.1.6.2.6 Interchangeable / Equivalent Connections
| Connection Type | Description |
|---|
| Equivalent Premium Connection | Designed to be functionally and dimensionally interchangeable with established premium threads (e.g., WSP-3T compatible with VAM series), enabling field flexibility |
Accessories and Components
- OCTG systems require a range of accessories for proper installation and operation:

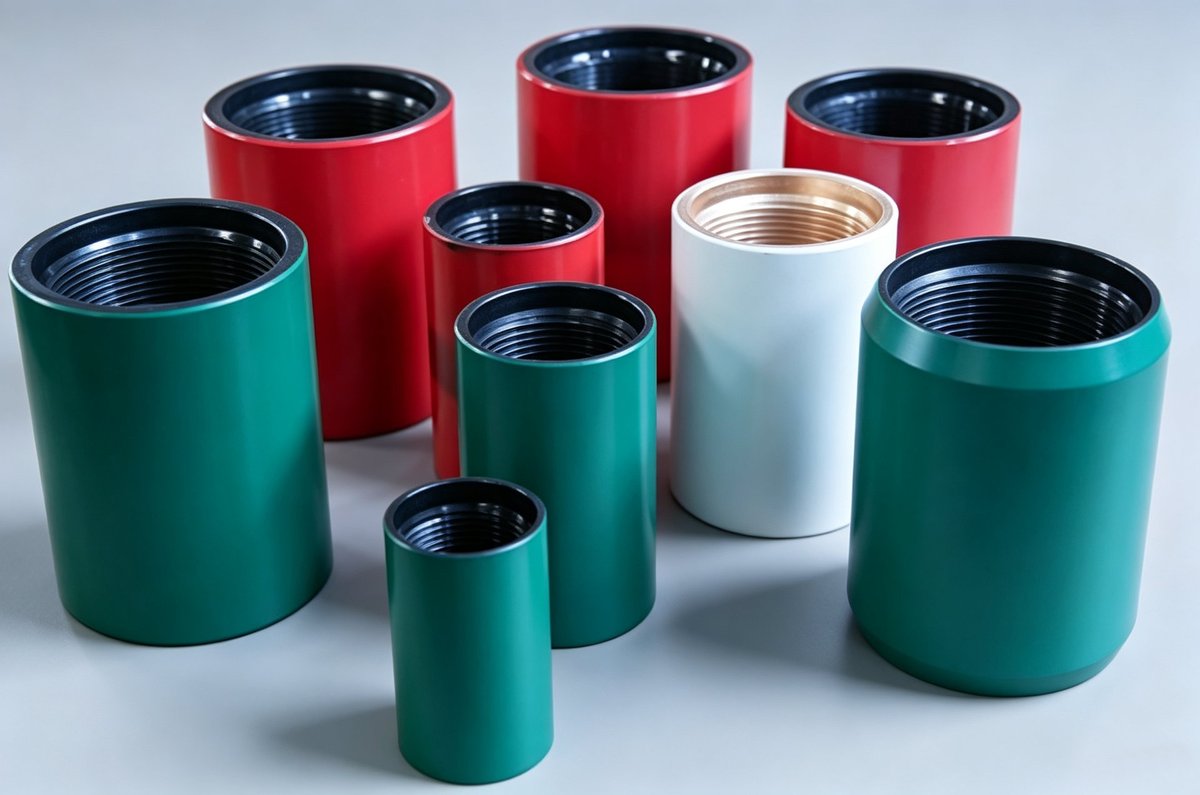

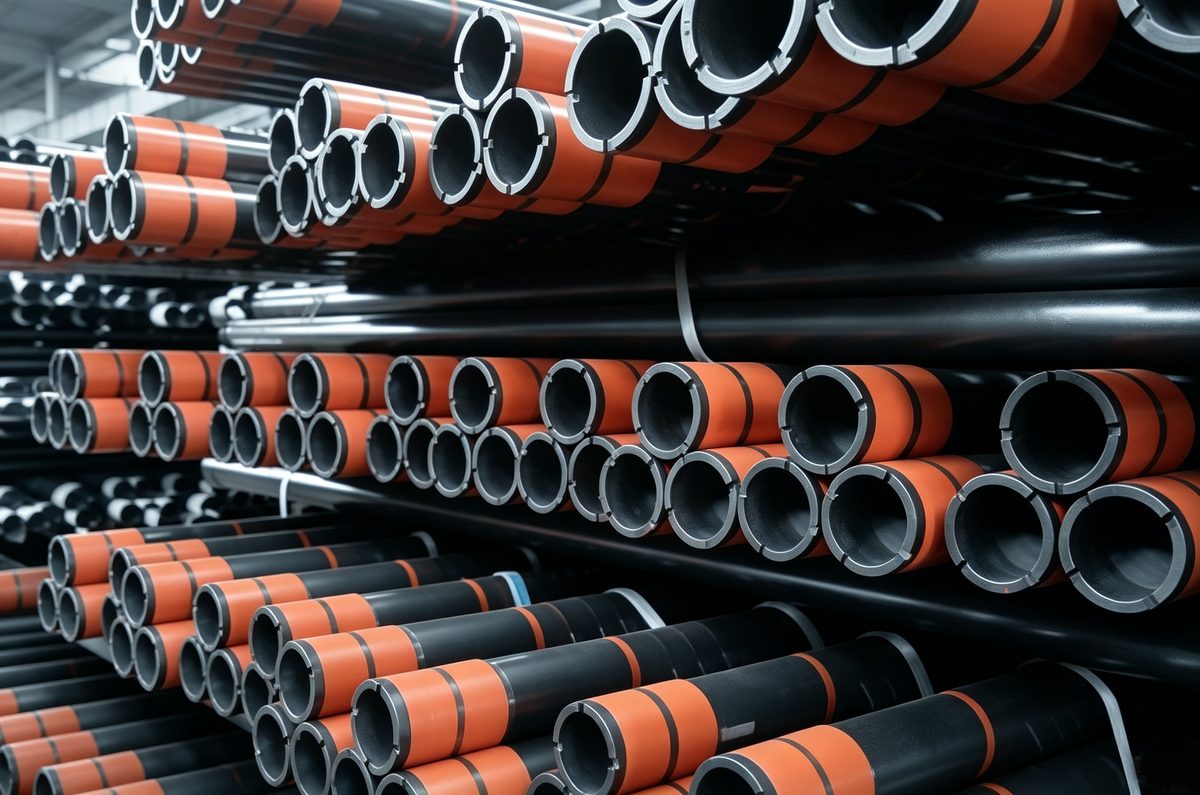

1 Couplings
| Type | Description |
|---|
| Standard API Coupling | Cylindrical connectors with internal threads for joining two pipes (STC, LTC, BTC configurations) |
| Premium Coupling | Matches premium connection geometries with enhanced sealing and torque capacity |
| Special Clearance Coupling | Reduced outside diameter for restricted clearance wellbores |
| Combination Coupling | Joins pipes of different thread types |

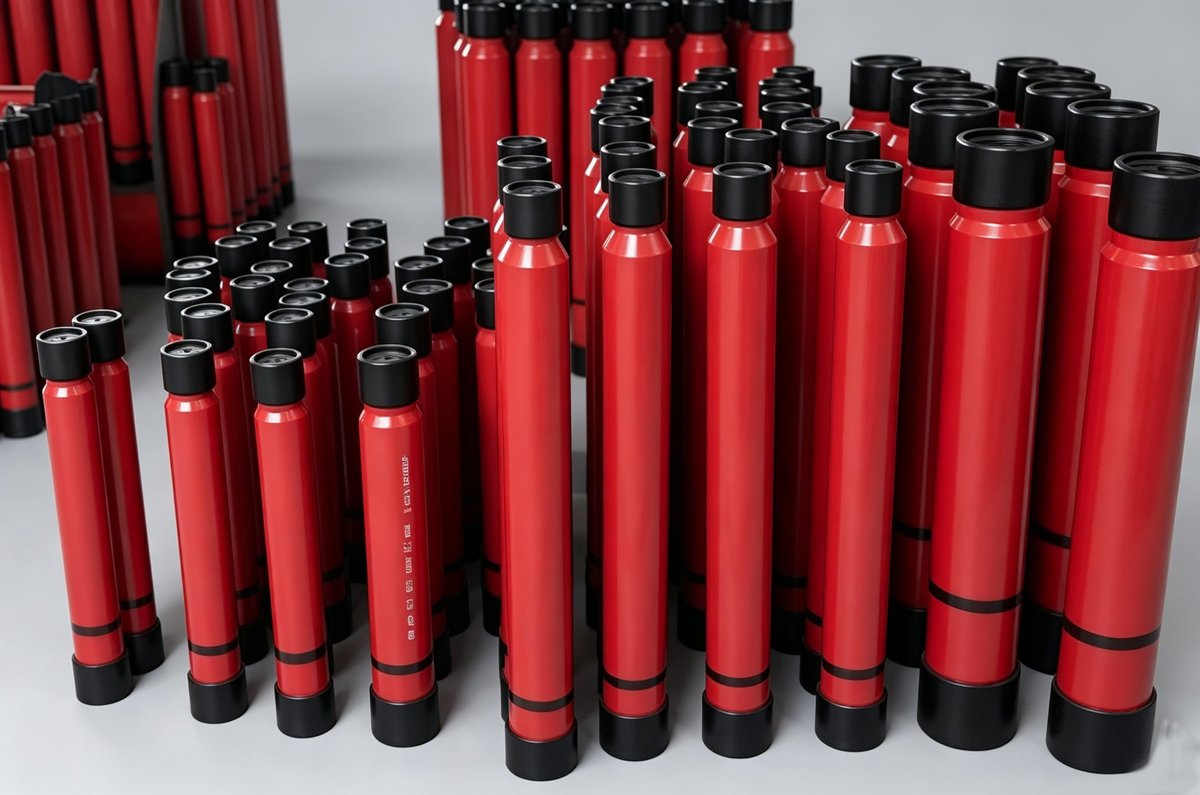

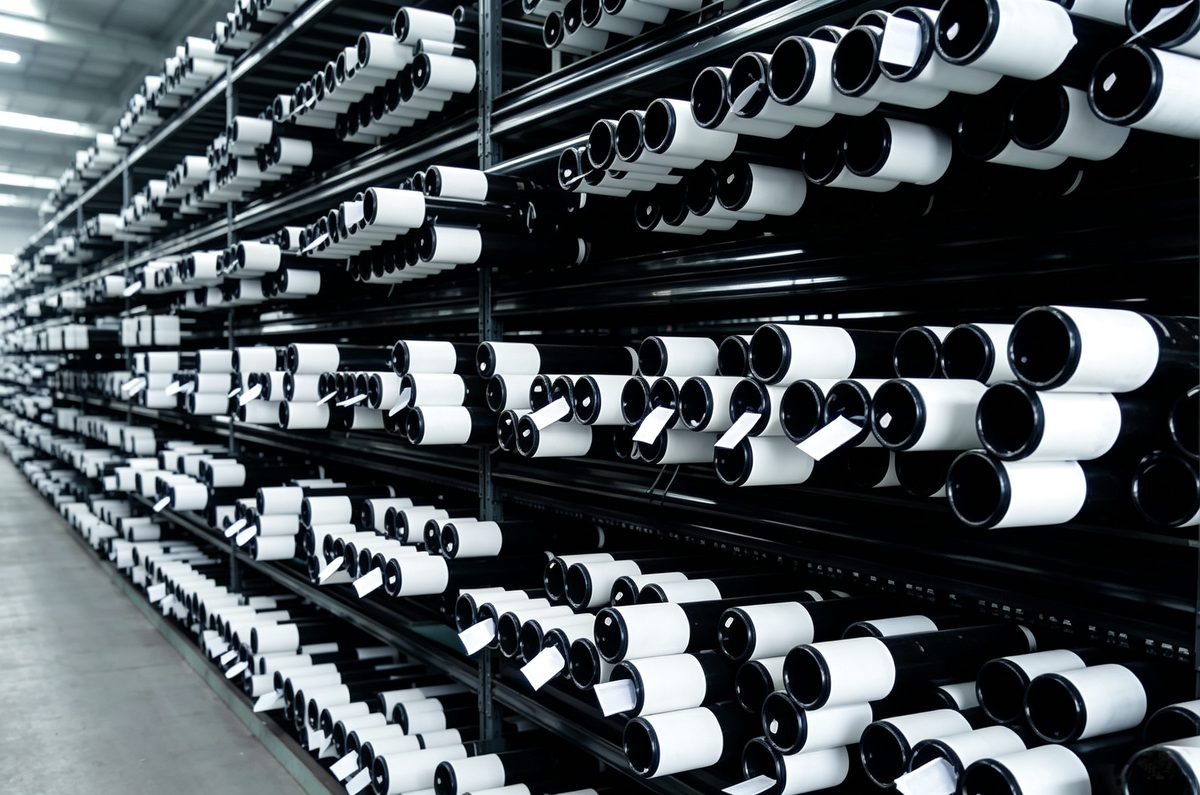

2 Pup Joints
| Type | Description |
|---|
| Tubing Pup Joint | Short length tubing sections (2–20 ft) for spacing adjustments in tubing strings |
| Casing Pup Joint | Short casing sections for length compensation in casing strings |

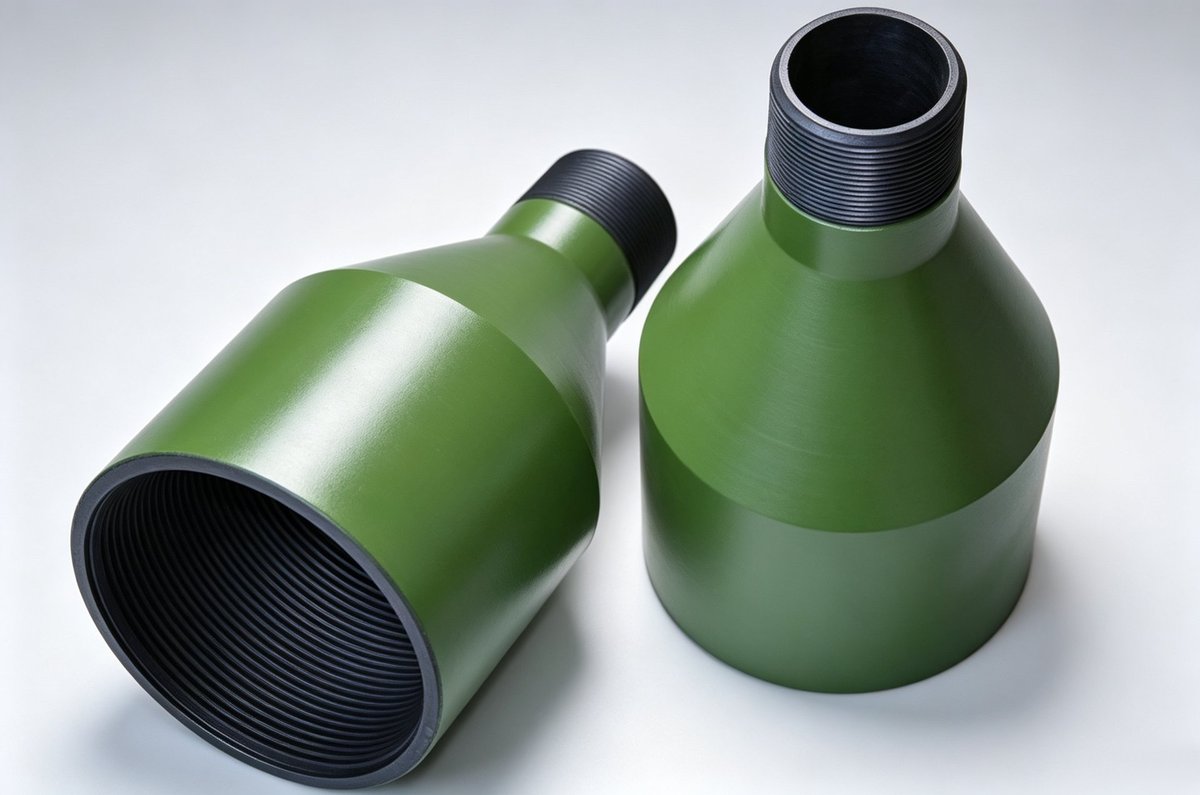

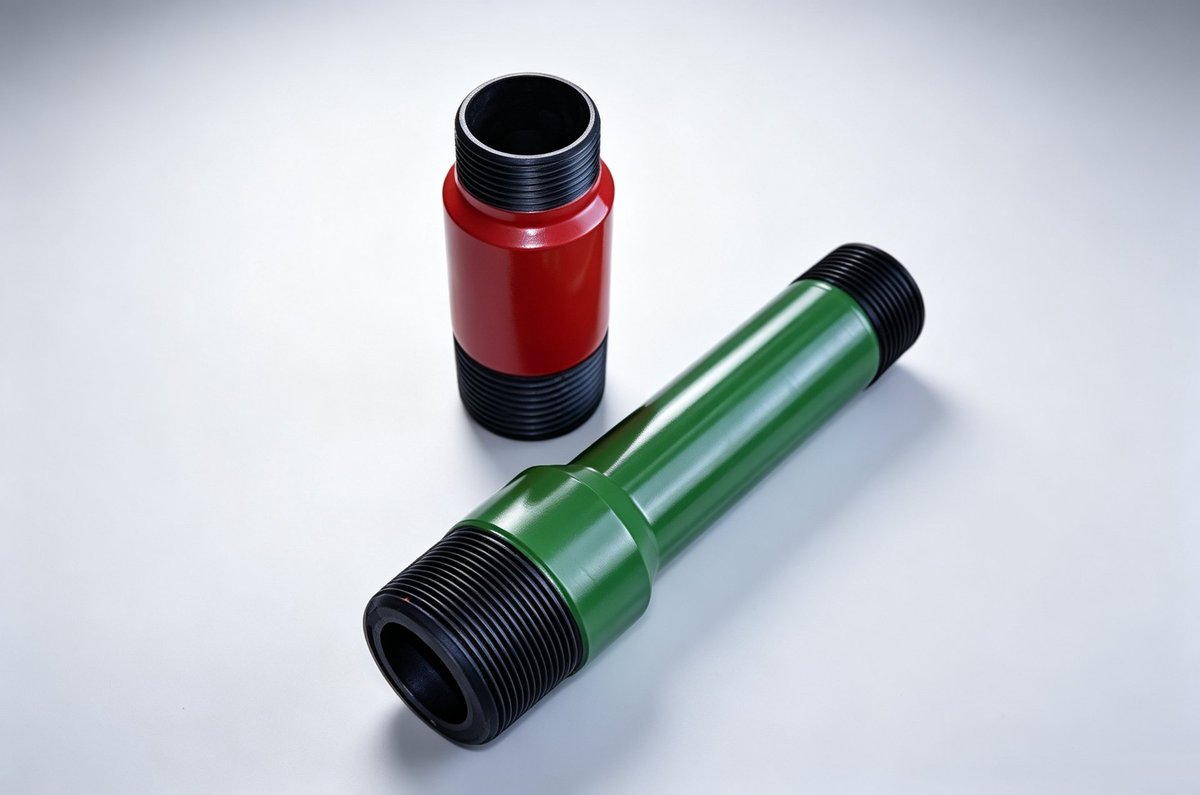

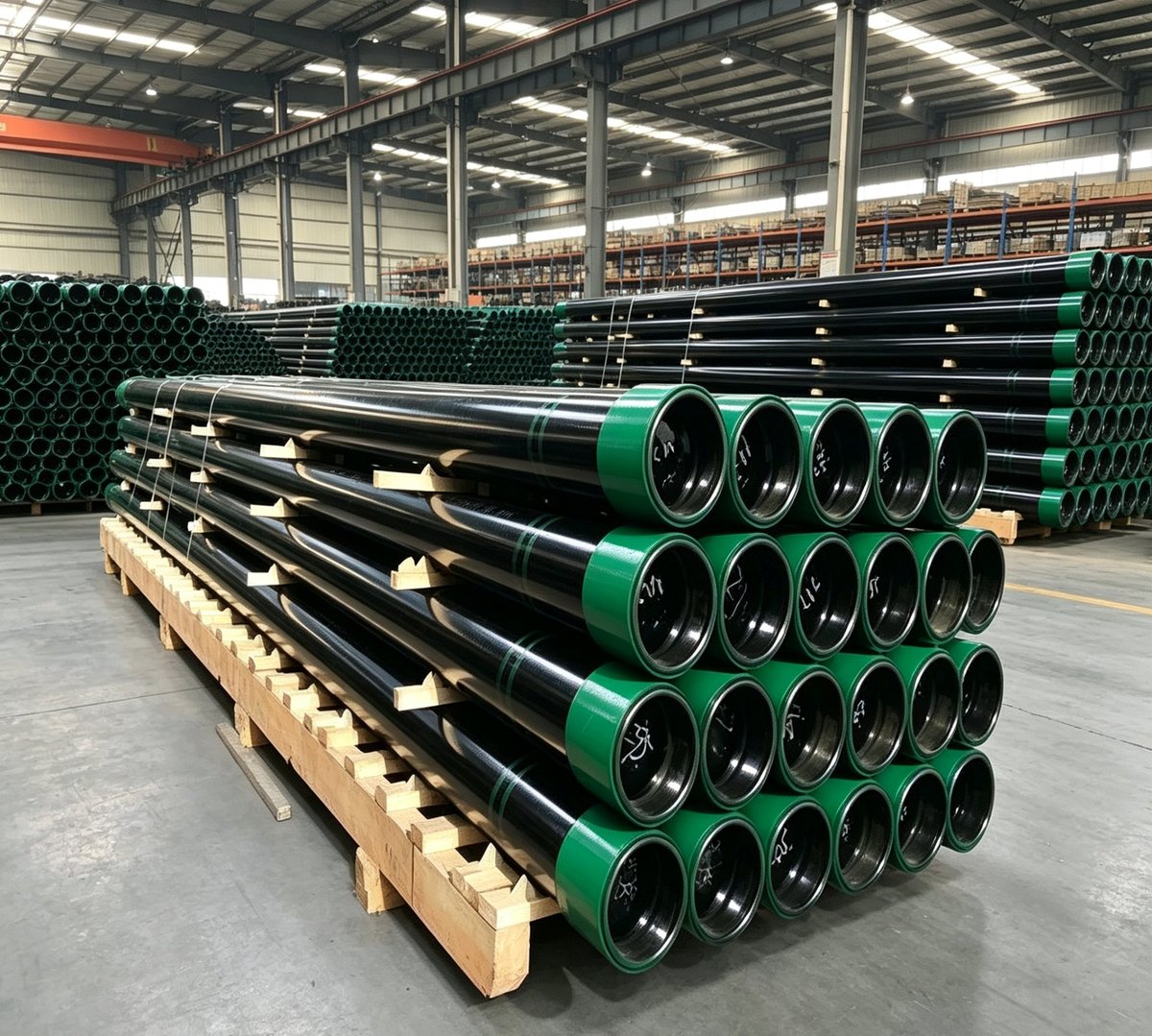

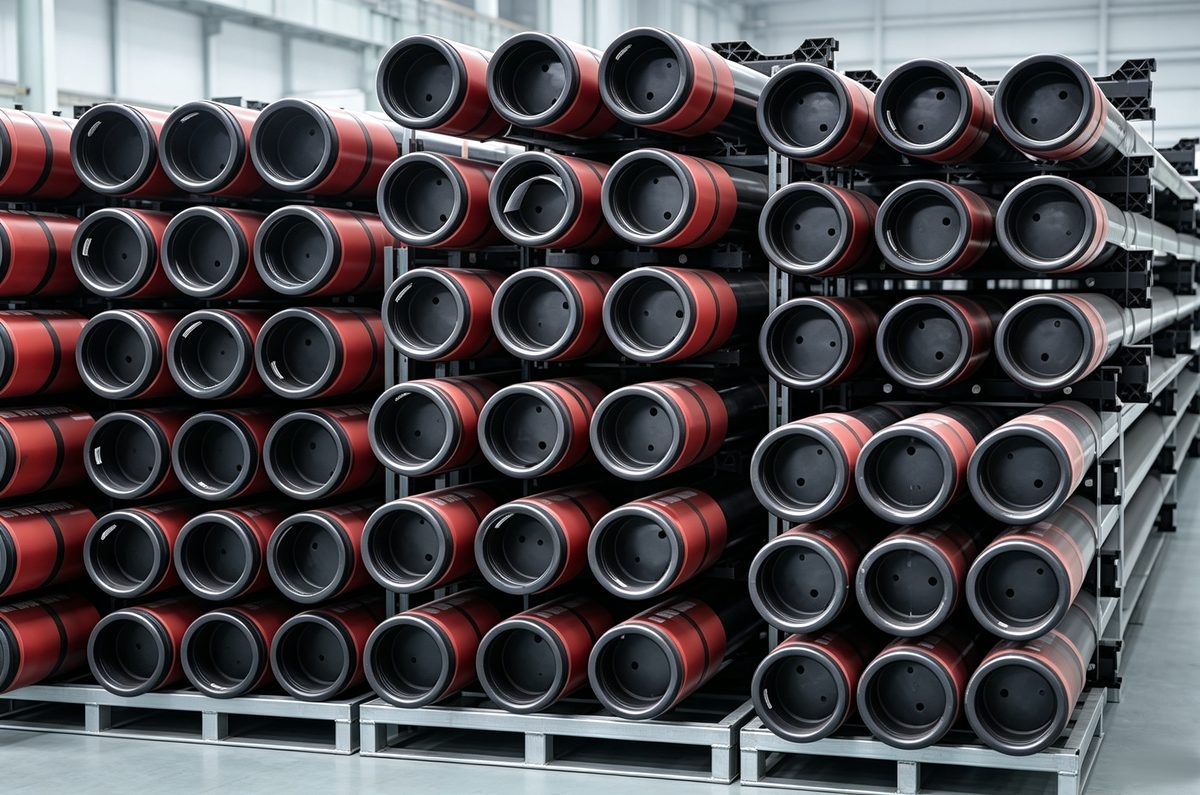

3 Crossover / Adapter Joints
| Type | Description |
|---|
| Thread Crossover | Connects pipes with different thread types (e.g., API to premium) |
| Size Crossover | Connects pipes of different diameters |
| Grade Crossover | Connects pipes of different steel grades with compatible transitions |
4 Other Accessories
| Accessory | Description |
|---|
| Coupling Stock | Raw material (seamless or welded pipe) for manufacturing couplings |
| Slip Elevator | Lifting equipment for pipe handling during running operations |
| Thread Protectors | Plastic or steel covers to protect threads during transport and handling |
